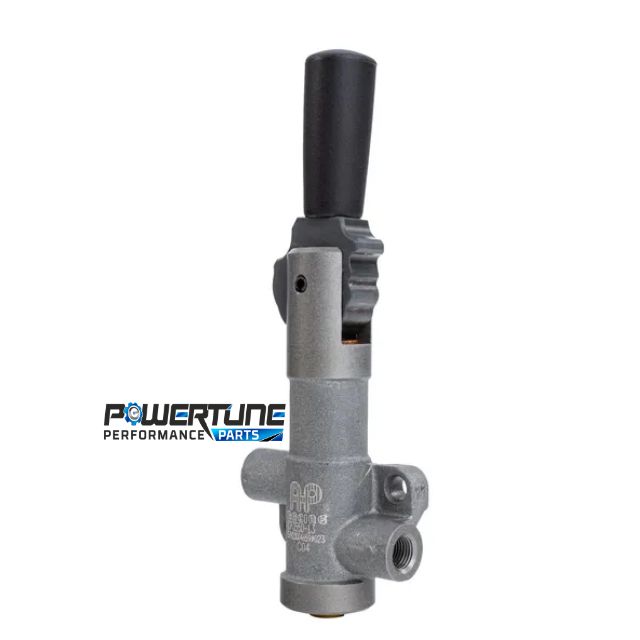

AP Racing 7 Position Lever Type Proportioning Valve - Single Bore

AP Part No.: CP3550-13

The lever type proportioning valve CP3550-13 provides the driver with 7 distinct settings from which to produce the most suitable braking ratio.

General Information:

Installation

To obtain the best performance using these valves, the brake balance should be biased towards the rear so that with the valve piped in to the rear line and set in position 7 where virtually no reductions occur, the balance is as much to the rear as will ever be needed. Moving the control lever to a lower setting will progressively reduce the rear line pressure giving more bias to the front, for use when more grip is available.

Nominal Ratio of 0.325.

Weight = 180g approx.

Note:-

This proportioning valve is suitable for use with any brake fluid that conforms to DOT 3, DOT 4 or DOT 5.1 standards, but best all round performance will be achieved with AP Racing 600 brake fluid.

Warning

Due to internal adjustments set by AP Racing, do not strip these assemblies. Do NOT attempt any modification of these valves. Strictly for competition use only.
